Meta describes pixel setup as two separate jobs: place the base code, then configure events. Its point-and-click Event Setup Tool can help with some website actions without editing event code, but a convenient trigger is not automatically a correct business event. The marketer still has to define the action, choose the right dataset, test dynamic pages and consent states, and reconcile the reported event with the website or CRM outcome.

VISUAL LESSON

What you will learn

  1. 01Separate base-pixel installation from event configuration.
  2. 02Translate a business action into a testable no-code trigger.
  3. 03Verify event receipt, meaning, and duplicate behavior before launch.

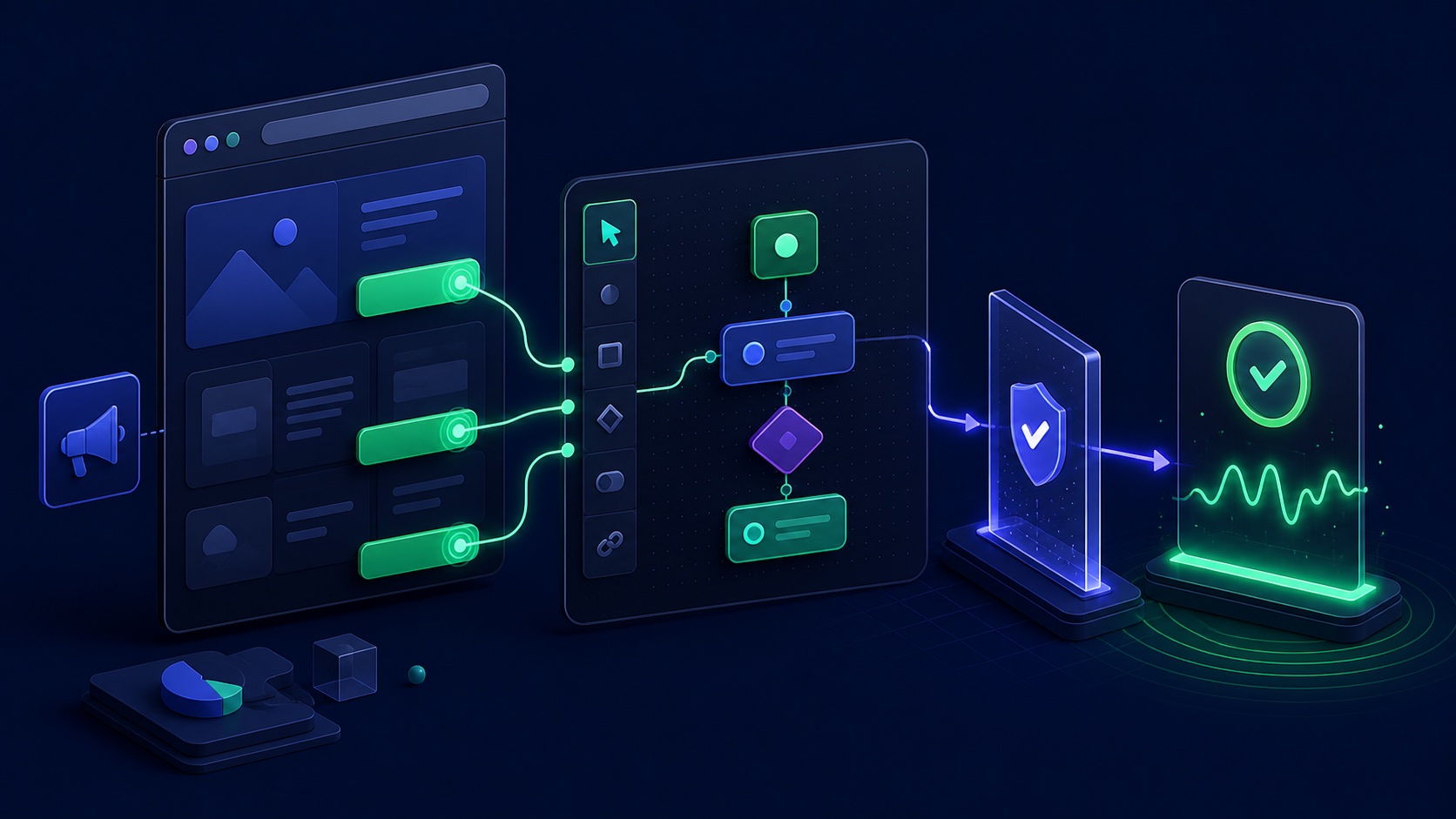

A website action map moves through a point-and-click event builder into a test gate and a verified conversion ledger
No-code setup removes some implementation work; it does not remove the need for a precise trigger, test evidence, and business reconciliation.

ILLUSTRATIVE WORKED EXAMPLE

Reconcile an illustrative 60-action test set

Known website actionsTest truth set
60
Event receiptsThree missing
57
Correctly named onceDuplicates removed
53
Matched backend recordsReady for review
50
Illustrative example—not a benchmark. Replace every sample value with your own campaign, market, and measurement data.

PRACTICAL INTERFACE MAP

Move from the website journey to Events Manager

Plan01Write the event contract

Name the customer action, page state, trigger, expected event, parameters, consent behavior, duplicate rule, source of truth, and owner.

Configure02Open the correct dataset and setup path

Confirm business, data source ID, domain, base-pixel receipt, partner integration, point-and-click eligibility, and the exact button or URL rule.

Prove03Run labeled journeys

Test success, failure, refresh, back navigation, duplicate submit, mobile, desktop, and consent states; compare receipts with website and CRM records.

Conceptual walkthrough. Labels, controls, and availability can vary by account, region, plan, and interface version; verify the current screen before acting.

STEP-BY-STEP LESSON

Business action → event contract → point-and-click trigger → verified receipt

DefineOne meaningful action
ConfigureSupported trigger
VerifyEvent versus truth

THE LEAD ATLAS METHOD

Lead Atlas Data can research business contacts tailored to the campaign’s categories, locations, and market, creating a separate outbound list while the Facebook website-event path is tested against its own evidence.See how custom list research works ↗
01

Write the event contract first

Choose one action that matters to the campaign, such as a confirmed lead, completed registration, or purchase. Record the visible page state, exact trigger, expected event name, required parameters, value and currency behavior, consent state, duplicate rule, backend evidence, and accountable owner.

Do not label a button click as a completed lead when validation or submission can fail afterward. Prefer the latest durable point that represents the intended business action, and keep shallow navigation events separate from outcome events.

02

Confirm the base installation and data source

In Events Manager, verify the business, pixel or dataset ID, connected domain, installation method, partner connection, data-source ownership, and recent base activity before adding events. Meta is gradually presenting event sources through datasets, and a dataset ID created from a pixel can be the same as the pixel ID.

Preserve the current configuration and implementation owner. If the base event appears from the wrong domain, fires twice, or belongs to another business or ad account, stop and repair that dependency rather than stacking new point-and-click rules on top.

03

Configure the smallest supported trigger

Use the current event-setup flow to identify the website and choose an eligible button or URL-based action. Select a standard event when it accurately describes the action, then document the element, page rule, exclusions, event name, parameters, creation time, and reviewer.

Dynamic buttons, single-page navigation, embedded forms, redirects, translated labels, and thank-you pages can change the trigger. If the tool cannot express the rule precisely, hand the event to the developer or supported partner path instead of accepting a misleading approximation.

04

Test the complete journey

Run labeled tests for valid completion, validation failure, double click, refresh, browser back, return visit, mobile, desktop, slow connection, and the consent choices the site supports. Inspect event name, URL, time, parameters, source, duplicate behavior, and the expected absence of an event on failure paths.

Match each received event to analytics, form, order, or CRM evidence. Investigate missing events, premature triggers, repeat receipts, stale rules, tag-container versions, blocked requests, and server-side copies without assuming every difference is a platform error.

05

Release with a measurement guardrail

Start with a controlled campaign window and compare website actions, received events, deduplicated events, attributed conversions, qualified outcomes, and value using aligned dates and definitions. Keep consent, privacy, security, retention, and Meta Business Tools obligations in the implementation review.

Deliverable: event contract, dataset and domain record, trigger specification, before-state capture, labeled test matrix, event receipts, backend reconciliation, exception log, launch approval, monitoring threshold, rollback instructions, and owner.

THE TAKEAWAY

Use the Event Setup Tool only after the base pixel and event meaning are clear, test one named journey at a time, and do not optimize spend until the received event agrees with the real action.
