YouTube end screens can promote videos, playlists, subscriptions, channels, and approved links during the final portion of an eligible video. Current help says the end screen can occupy the last 5–20 seconds, the video must be at least 25 seconds long, and a standard 16:9 video can contain up to four elements. The feature is unavailable in some contexts, including made-for-kids videos, and YouTube may render elements differently by device and context. This lesson designs the ending around a viewer decision and measures whether that decision actually happens.

VISUAL LESSON

What you will learn

  1. 01Choose the next-video job for the end screen.
  2. 02Build an eligible final segment and element layout.
  3. 03Measure element clicks and downstream viewing.

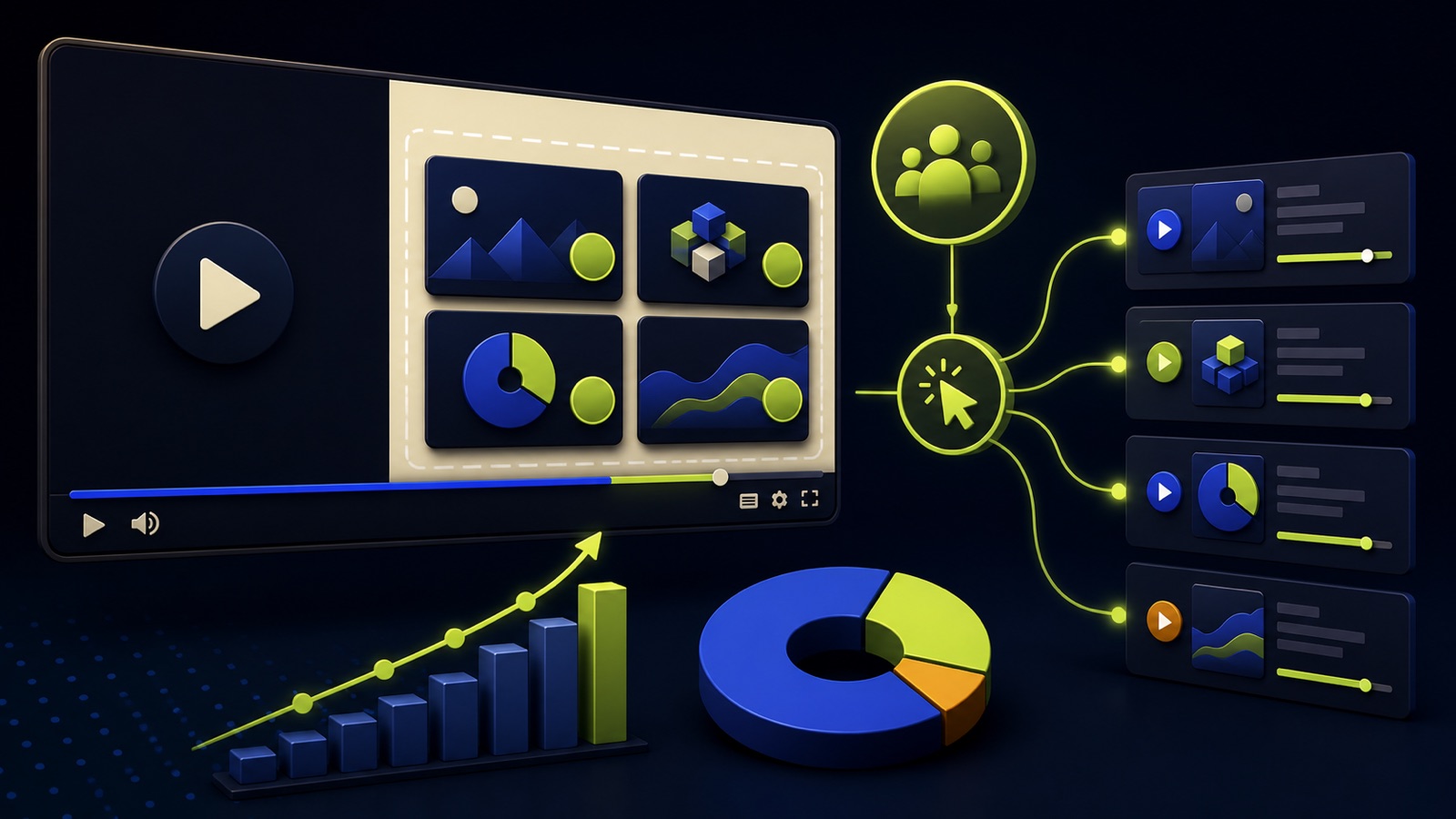

A video’s final segment contains four optional recommendation tiles connected to next-video click paths
An end screen works as a designed handoff from the current promise to the most useful next piece of content.

ILLUSTRATIVE WORKED EXAMPLE

Compare an illustrative end-screen path

End-screen impressionsIllustrative eligible exposures
8,000
Primary video clicksChosen next lesson
1,440
Playlist clicksSecondary learning path
560
Next-video completionsDownstream quality check
720
Illustrative example—not a benchmark. Replace every sample value with your own campaign, market, and measurement data.

PRACTICAL INTERFACE MAP

Design the final segment as a viewer decision

Plan01Choose one primary continuation

Match the current video’s unresolved question to one next video or playlist and define the supporting subscription or link role.

Build02Reserve time and place elements

Edit a calm final 5–20 seconds, add eligible elements in Studio, respect templates and safe areas, and preview the rendered layout.

Measure03Read clicks with downstream quality

Compare element impressions, element click rate, next-video watch behavior, device mix, and changes to the final-segment retention.

Conceptual walkthrough. Labels, controls, and availability can vary by account, region, plan, and interface version; verify the current screen before acting.

STEP-BY-STEP LESSON

Current lesson → designed final segment → one clear next step → deeper viewing

ChoosePrimary continuation
ComposeFinal-frame safe area
LearnClicks and downstream viewing

THE LEAD ATLAS METHOD

Lead Atlas Data can research a custom business-contact list for the same campaign’s market, locations, and business categories, letting the team compare direct outreach with the audience journey created by the video series.See how custom list research works ↗
01

Choose the end-screen job

For each video, write the viewer’s likely next question and choose one primary continuation: a specific video, a playlist, a subscription invitation, an eligible channel, or an approved external destination when the account supports it. Make the next step a logical continuation of the current promise.

Limit secondary elements so they do not compete with the main action. Define the measurement plan before editing: eligible end-screen impressions, element clicks, element click rate, next-video watch time or completion, subscriptions, external conversions where applicable, and final-segment retention.

02

Script and edit the final segment

Reserve a final section within YouTube’s current 5–20-second window and ensure the whole video meets the minimum length. Continue delivering useful content while verbally and visually introducing the next step; avoid a sudden blank outro that gives viewers a reason to leave before elements appear.

Create negative space for the planned element positions and keep faces, demonstrations, captions, and essential text outside those zones. Use a consistent visual system, but customize the spoken transition to the actual next video rather than using a generic request on every upload.

03

Add eligible elements in Studio

Open the video in YouTube Studio, enter the end-screen editor, use a template or place individual elements, and select the exact video, playlist, subscribe, channel, or supported link destination. Current YouTube help says a standard 16:9 end screen can contain up to four elements.

Check eligibility before promising the feature. End screens are unavailable for made-for-kids videos and can be limited by video, account, or destination conditions; use the controls actually presented and preserve the selected items and publish date.

04

Preview the rendered experience

Preview the final segment and inspect desktop, mobile, television, and other representative viewing contexts where possible. Confirm the elements appear at the intended moment, do not hide the proof or captions, point to the correct destinations, and remain understandable without sound.

YouTube notes that end screens may show differently and viewers can hide them, so do not treat the editor canvas as a pixel-perfect guarantee. Publish a test or review the live video and correct any destination, timing, crop, or accessibility issue.

05

Measure and improve the sequence

Use YouTube Analytics to review end-screen element impressions, element clicks, and element click rate, then examine final-segment audience retention and the watch behavior of the selected next content. Segment by video and element rather than averaging unrelated purposes.

Deliverable: next-question statement, primary and secondary element plan, final-segment script, safe-area frame, Studio configuration capture, eligibility check, multi-device preview notes, element-click report, final-retention review, downstream watch-quality check, and one controlled revision hypothesis.

THE TAKEAWAY

Pick one primary next step, write and edit the ending around it, add only eligible elements that fit the final frame, preview representative devices, and improve the sequence using element-level clicks and downstream viewing.

OFFICIAL REFERENCES

Check the platform’s current instructions.

Platform labels, eligibility, and workflows can change. These official help pages were used to validate this lesson.
